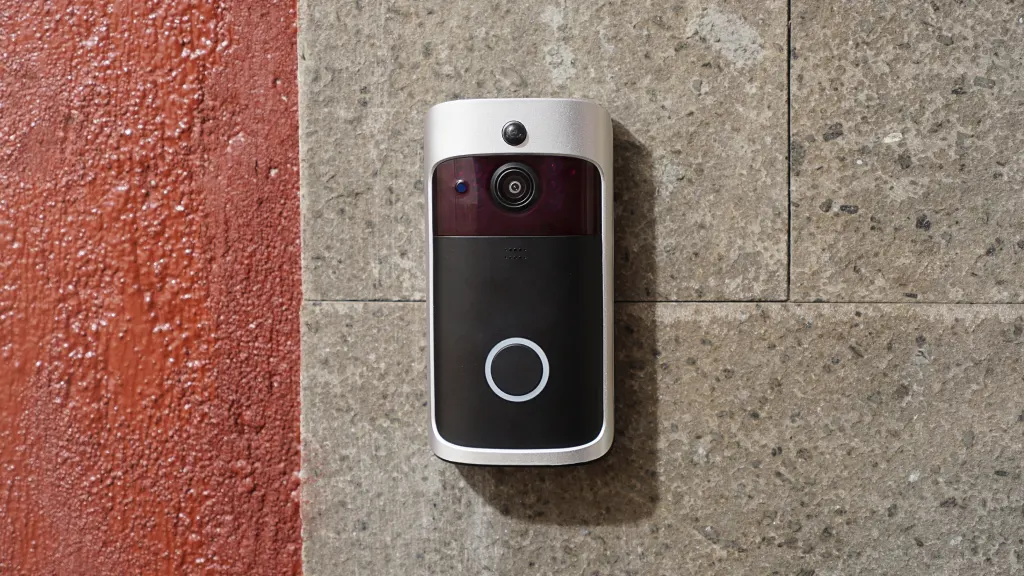

How to install a wired doorbell
💡 Need to know
- Cut the power first: Always shut off the breaker before touching wires.
- Match wires carefully: Incorrect terminals will stop the doorbell from working.
- Check transformer voltage: Smart doorbells need 16–24V AC.
- Prep tools ahead: Having everything ready avoids mid-install mistakes.
A wired doorbell is a reliable, low-maintenance device that ensures you never miss a visitor. The installation process can be a manageable do-it-yourself project for most homeowners. However, as it involves low-voltage wiring, the right preparations are critical.
At Asurion, our experts help customers make the most out of their technology. This guide will walk you through how to wire a doorbell safely and common post-installation challenges.
What to know before you start your doorbell installation
You don't necessarily need an electrician to install a wired doorbell. But this DIY task requires a few safety precautions:
- Shut off power at the breaker
- Use a voltage tester
- Avoid wet conditions
- Replace damaged wiring
You’ll need tools like a screwdriver, drill, electrical tape, level, and voltage tester.
Bought it? Protect it.
Get coverage for life's unexpected moments. Future you will thank you.
Steps to install your new wired doorbell
1. Turn off power at the breaker
Flip the breaker to the “off” position before starting.
2. Remove the old doorbell hardware
Remove screws, expose wires, label them, and disconnect the button.
3. Identify your wiring configuration
- Two-wire system
- Three-wire system
- Multiple chime system
4. Connect the wiring to the new doorbell
Attach wires to labeled terminals like TRANS and FRONT, then tighten securely.
5. Mount the new doorbell
Align it with a level and secure it to the wall.
6. Restore power and test
Turn power back on and test functionality.
Checking your transformer and chime box compatibility
Verify your transformer supports the correct voltage (16–24V AC for smart models). Inspect wiring in the chime box to confirm correct connections.
How to fix common wired doorbell issues after installation
- Doorbell not ringing: Check wiring connections
- Low power: Confirm transformer voltage
- Chime issues: Verify compatibility with digital chimes
If issues persist, consult a licensed electrician.
Stay covered. Stay connected.
Don’t let breaks and malfunctions set you back. Explore protection plans that can help cover life's unexpected moments with live expert support and fast repairs designed to get you back up and running quickly. Find the care plan option right for your devices—and your budget.
FAQ
Do I need an electrician to install a wired doorbell?
Not always—most installs are DIY-friendly, but call a pro if wiring is complex.
What voltage does a doorbell transformer need?
Standard doorbells use 10–16V AC, while smart models often require 16–24V AC.
Why isn’t my doorbell ringing after installation?
It’s usually due to incorrect wiring or insufficient power.
Can I install a smart doorbell on existing wiring?
Yes—if your transformer and wiring meet the voltage requirements.
